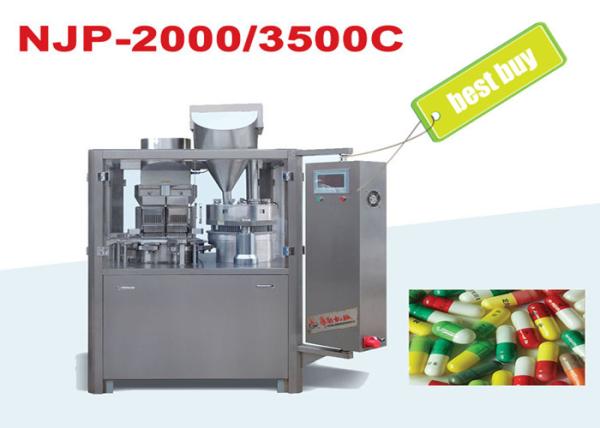

Product Name: Pharmaceutical Rotary Type Auto Pill Powder Granual Capsule Filling Machine
Description
1.Small volume, low energy consumption, fast mold change, convenient operating ,easy cleaning. High transmittance, small vibration, low noise
2.The rate of capsule filling >99%.
3.The turning-around parts are in full closure, having excellent lubricating conditions. No oil dirt on the working bench, avoid the cross pollution with the medicine.
4.Shelter are fixed around the dose pan, which can recycle the powder, reduce the dust on working bench.
5.Adopt the man-machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsules lacking, and automatically stop for lacking of medicine powder, breakdown diagnosing display.
Specifications
| Item | NJP-2000 |
| Output | 120000 capsules/h |
| Bores | 18 |
| Rate of capsule filling | 99% |
| Appropriate for capsule | 00#-4# |
| Total Power | 8kw |
| Noise standard: | ﹤75dB(A) |
| Weight | 1000kg |
| Dimension | 1000*1300*1900mm |
Improves the module turntable the internal structure.
Using the japan imported linear bearing. ensure equipment's accuracy and service life.
Main transmission shafts bearing block can splits, easy for maitance and fix.
Groove wheel dividing mechanism, accurate indexing, long service life.
All drive cam is using high quality material to made into indentation cam, resist abrasion, steading working, long service life.
Configure the pellet mechanism. |
WORK STEPS AND PACKAGE
WARRANTY
- Technical Support(24 hours on line support by emails, skype, MSN, mobile).
- Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
- Video for debugging after sent products.
- Pre-maintance.
- Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
- Welcome send us samples to test on our machine and we will take video for you to confirm.
- Welcome visit our factory for checking machine and offer training course for your workers.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your capsules,the target capacity you want the machine meet. The more information the better.
