Food Packaging Blister Pack Sealing Machine Irregular Food stuff

WENZHOU HUALE MACHINERY CO.,LTD

Food Packaging Blister Pack Sealing Machine Irregular Food stuff

  • 1
  • 2

Brand Name : HUALE MACHINUARY

Model Number : DPP-350A

Certification : CE/ ISO9001

Place of Origin : China

MOQ : 1 set

Price : 1-20,000 usd/set

Supply Ability : 10 Sets per month

Delivery Time : 40 working days after received your payment

Packaging Details : packed in plastic bag and fixed in export wooden box

machine name : Flat type Aluminum Plastic blister packing machine

packaging material : Aluminum foil PVC or PVC heating sealing paper

control motor : stepper motor or serve motor

control system : PLC programmable control system

blister plate size : design according to customer's requirement

Contact Now

Food Packaging Blister Pack Sealing Machine Irregular Food stuff

Introductions:

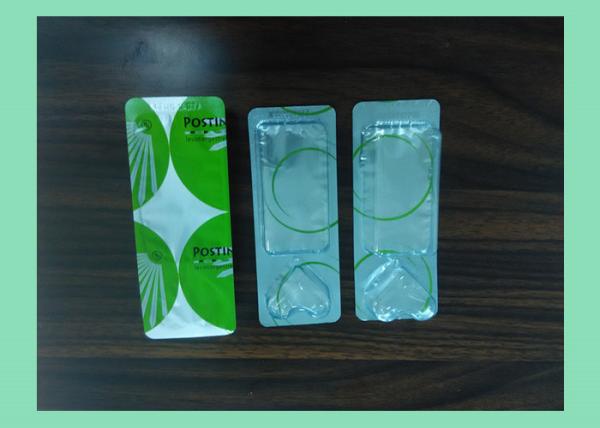

DPP-350A suit for packing capsule, tablet, penicillin bottle, oral liquid, candy

irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health products, light industries package.

Performance and characteristics:

  1. The machine is controlled by PLC,which make it has accurately operation and simple construction. The larger forming area and depth is suitable for more items which expand application range of the machine.
  2. The machine use heating board to make PVC’s temperature up tp 100℃ and use compressed air to make PVC formed.
  3. The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.
  4. Speed is shifted by step-less transducer. Blanking frequency is 45times/min.
  5. the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  6. Mould and feeder can be designed according to customer ‘s request.

TECHNICAL PARAMETER

Item Model

DPP-350A

Cutting Frequency(ideal sizes:80*57mm)

15-45 cutting/min

Max. Forming Area and Depth

350×130×15

Adjustable Scope of Travel(mm)

30-140mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.4)×350×(Φ400)

PTP(mm)

(0.02-0.15)×350×(Φ400)

Paper(mm)

(50-100)g/㎡

×350×(Φ400)

Power

380V 50Hz 9.5kw

Air compression(self-prepared)

0.6-0.8Mpa≥0.6m³/min

Recycle water or circulating water consumption

60-100L/h

Overall Dimension(L*W*H)(including foundation)

3650×850×1700

Dimension of Each Part

1850×850×1700(front)

1800×850×1650(back)

Weight

About 2000kg

Food Packaging Blister Pack Sealing Machine Irregular Food stuff

Food Packaging Blister Pack Sealing Machine Irregular Food stuff

Questions and answers

1)Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

2) Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

3) Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.

4) Q: what information should I let you know when I want to get quotation?

A: - the specific of your product

-If it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
